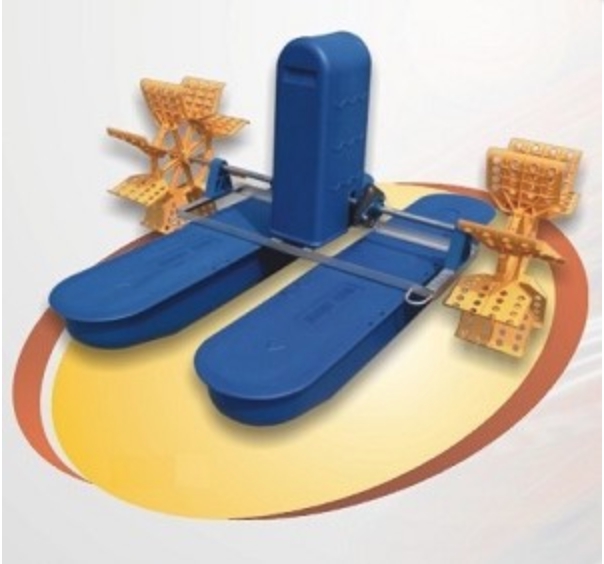

Paddlewheel Aerators- 1HP Paddelwheel Aerator

• Desciption
  Dissolve oxygen is arguably the most critical water quality parameter in aquaculture farming and potential profit is lost every year from direct effects of low oxygen, poor growth, food conversion, and a variety of environmental and pathogenic diseases directly related to the stresses of poor water quality. The use of paddlewheel aerators becomes another factor to be considered and crucial in aquaculture farming.
• Specification
  AM-001
• Detail
  Power: 1 HP 3PH or 1PH motor (TECO motor available);
  Reducer: Bronze worm gear wheel with ⍦28mm output shaft;
  Impeller: 8 removable nylon paddles with brass bushing x 2;
  Float: HDPE 1,630mm x 2;
  Frame: SUS 304;
  Cover: HDPE;
  Shaft: SUS 304, ⍦25 x 550mm x 2;
  Movable Joint: Cast iron (SUS 304 available);
  Setting Bar: 1/2'' x 8 ft x 4;
  Dimensions (Assembled): 1,700 x 1,630 x 870mm;
  Loaded Volume (Net): 0.37M³;
  Loading Capacity (20ft / 40ft): 84 units / 176 units


•

Paddlewheel Aerators- 2HP Paddelwheel Aerator

• Desciption
  Dissolve oxygen is arguably the most critical water quality parameter in aquaculture farming and potential profit is lost every year from direct effects of low oxygen, poor growth, food conversion, and a variety of environmental and pathogenic diseases directly related to the stresses of poor water quality. The use of paddlewheel aerators becomes another factor to be considered and crucial in aquaculture farming.
• Specification
  AM-002
• Detail
  Power: 2HP 3PH motor (TECO motor available);
  Reducer: Bronze worm gear wheel with ⍦28mm output shaft;
  Impeller: 8 removable nylon paddles with brass bushing x 4;
  Float: HDPE 1,630mm x 3;
  Frame: SUS 304;
  Cover: HDPE;
  Shaft: SUS 304, ⍦25 x 848mm x 2;
  Movable Joint: Cast iron (SUS 304 available);
  Setting Bar: 3/4'' x 8 ft x 4;
  Dimensions (Assembled): 2,200 x 1,630 x 870mm;
  Loaded Volume (Net): 0.554M³;
  Loading Capacity (20ft / 40ft): 56 units / 116 units


•

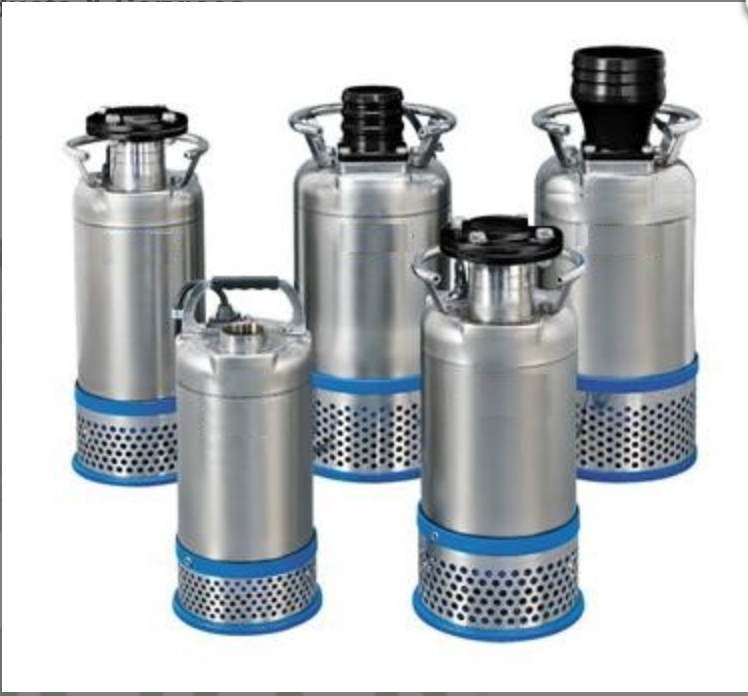

Pumps - Amphibous Pumps

• Desciption
  Use of VCT cable, dry motor equipped with thermal AutoCut to prevent motor from overheating, abrasion resistant double mechanical seal and addition of oil reservoir seal. Strainer can be removed and replaced with a check valve, allowing dewatering of underground water applications.
• Detail
  Aquaculture water supply and drainage ;
  Water supply for agricultural irrigation, underground water pumping ;
  Landscape and horticulture irrigation;
  Extraction of water from rivers, lakes, and reservoirs.

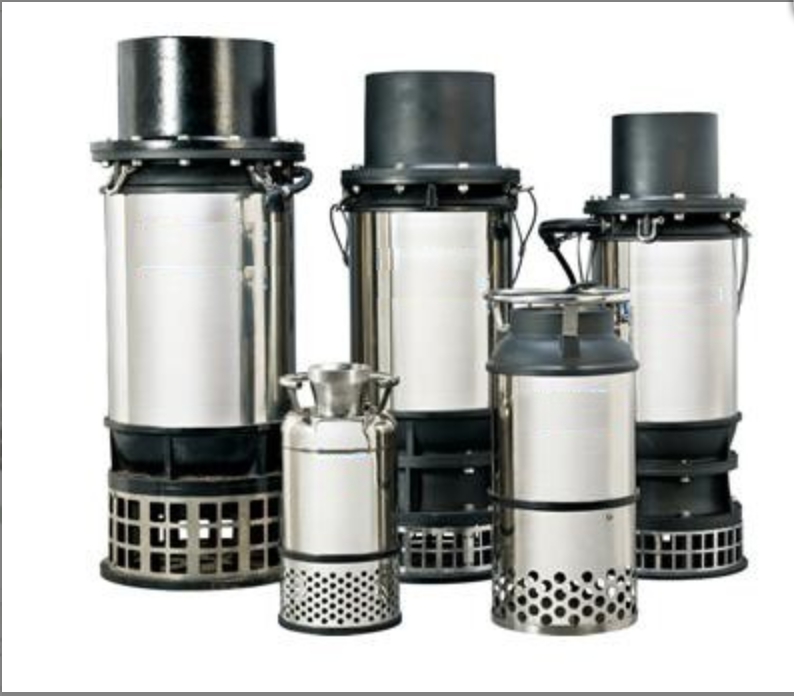

Large Volume Water Pumps

• Desciption
  Large flow capacities achieved with almost no vibration or noise. Use of Axial & Mix flow design. Sturdy construction and compact design with dry motor, double mechanical seal & impeller flow guide vane for high efficiency. Simple to operate and maintain.
• Detail
  Aquaculture water supply and drainage ;
  Water supply for agricultural irrigation, underground water pumping ;
  Landscape and horticulture irrigation;
  Extraction of water from rivers, lakes, and reservoirs.

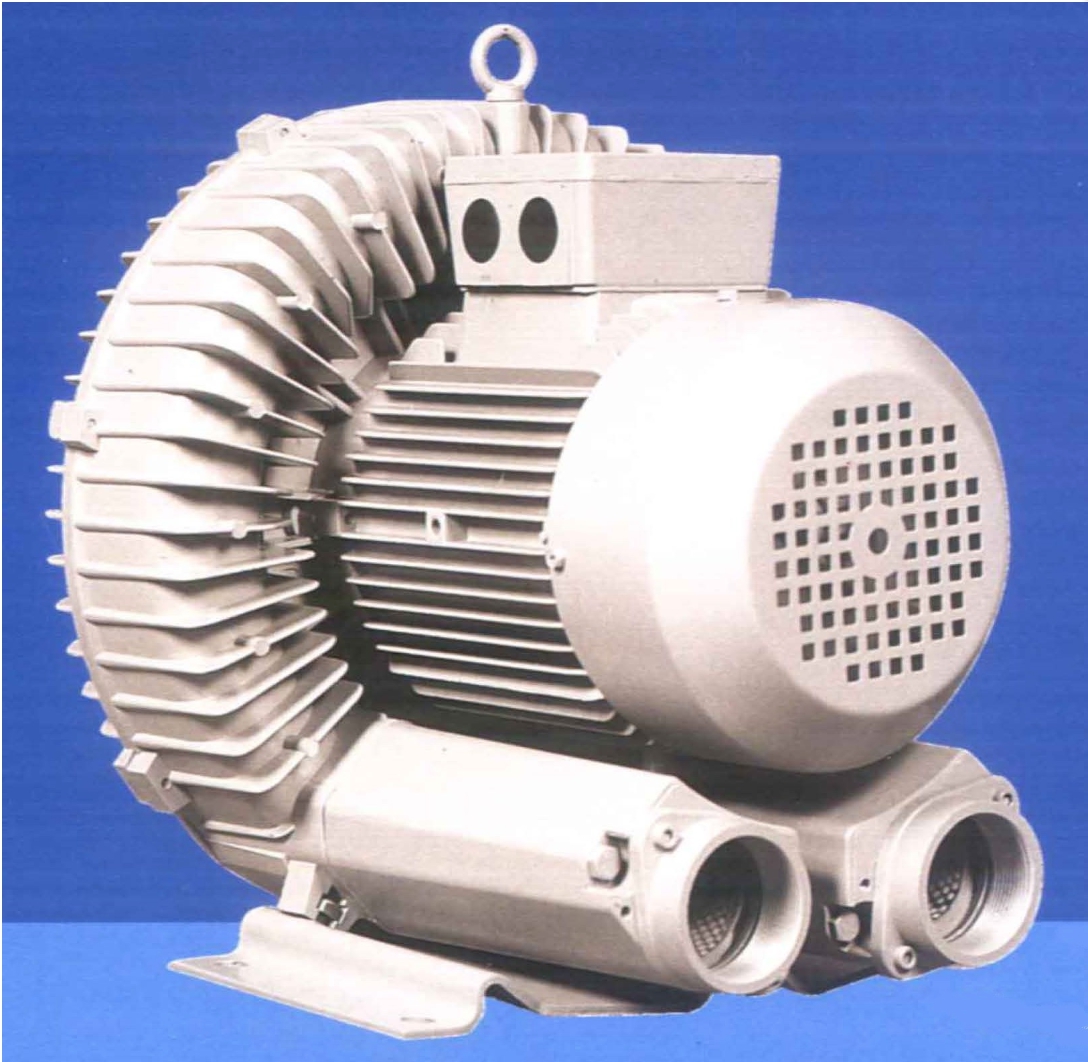

Fan/Ring Blower

• Desciption
  Easy to install – Ready for immediate installation either as a vacuum pump or as a compressor. The unit can be mounted in any position, horizontally or vertically. Low noise level – The use of direct-driving low-noise motors and integral silencers ensure low noise level. High efficiency – The unit is driven by a 2-pole motor with IP54 protection and class F insulation.
• Detail
